Articulated Blowoff - LS3500.jpg

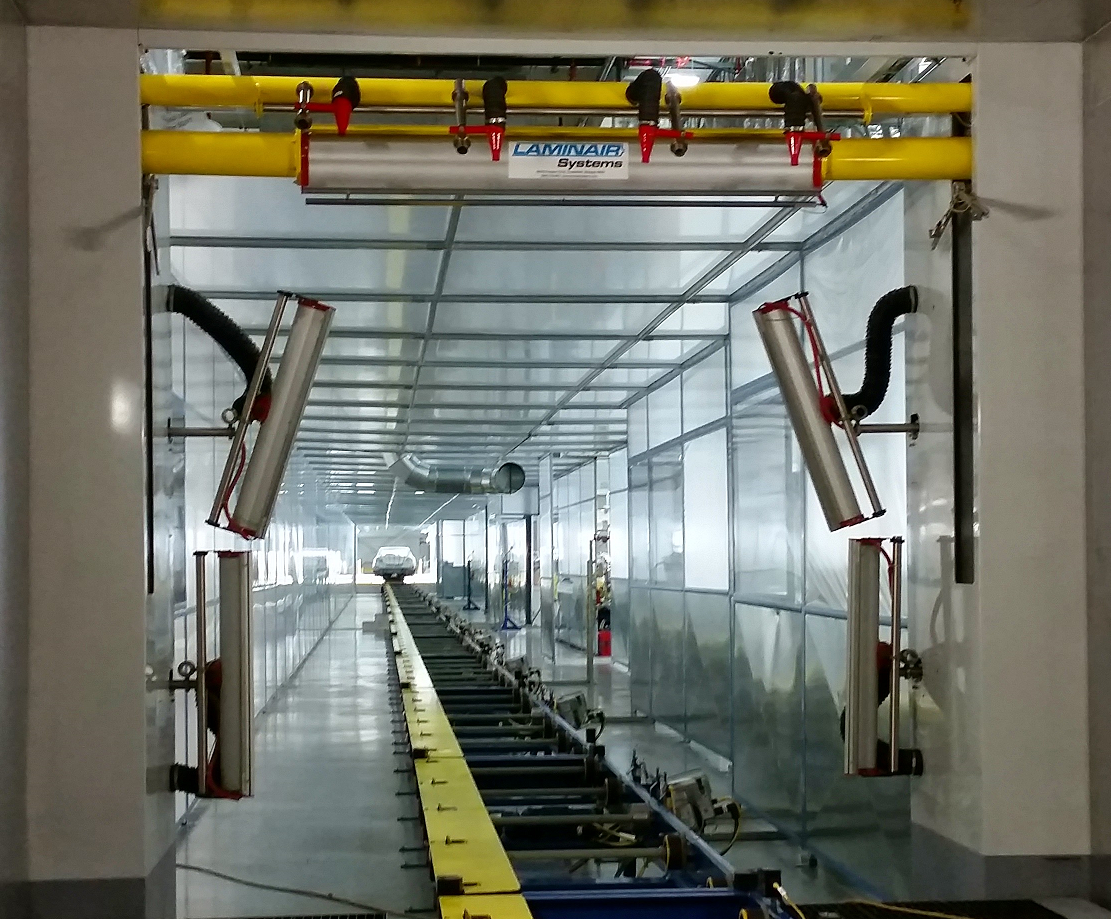

Articulated Blowoff - LS3500

  • True Clean Wall design minimized dirt collecting surfaces.

  • Adjustable side arm nozzles in three axis.

  • Articulated top arm with up to 3 axis Vertical, Horizontal and rotational.

  • Top Arm Breakaway Protection.

  • Fan generated air supply.

  • Ionized laminar air flow for improved cleaning.

  • Teach pendant programming.

  • PLC controlled with optional MMI.

  • Overhead arm closed loop electric drives.

  • Fixed side arms with optional articulated side arms.

  • Monitored break away side arms with 20 inches clearance each side.

  • All hoses enclosed.

  • Integral hard duct system.

  • Top or bottom feed duct.

  • Stainless steel skins.

  • Reduced noise level.


Articulated Bed Blowoff - LS3250.jpg

Articulated Bed Blowoff - LS3250

  • Adjustable side arm nozzles in three axis.

  • Articulated bed arm one vertical axis.

  • Rotational adjustment of bed nozzle.

  • Fan generated air supply.

  • Ionized laminar air flow for improved cleaning.

  • Teach pendant programming.

  • PLC controlled with optional MMI.

  • Overhead arm closed loop electric drive.

  • Fixed side arms with manually adjustable positions for distance to job.

  • Monitored break away side arms with 16 inches clearance each side.

  • Integral plenum system.

  • Top or bottom feed duct.

  • Stainless steel skins.

  • Reduced noise level.


Articulated Blowoff - LS3000.jpg

Articulated Blowoff - LS3000

  • True Clean Wall design minimized dirt collecting surfaces.

  • Up to 3 Axis Overhead Hood – Vertical, Horizontal and Rotate +/- 90°.

  • Fan generated air supply.

  • Ionized laminar air flow for improved cleaning.

  • Teach pendant programming.

  • PLC controlled with optional MMI.

  • Overhead arm closed loop electric drive.

  • Fixed side arms with manually adjustable positions for distance to job.

  • Integral plenum system..

  • Powder coated steel skins.

  • Reduced noise level.


LS2000 Blow Off System (Medium).jpg

Stationary Blowoff - LS2000

  • Top Arm Breakaway Protection.

  • Fan generated air supply.

  • Ionized laminar air flow for improved cleaning.

  • Integral hard duct system.

  • Top or bottom feed duct.

  • Conveyor interlocks.

  • Adjustable timer for fan shut down when paint line is idle.


Stationary Blowoff - LS1500.jpg

Stationary Blowoff - LS1500

Convert the LS1000 to LS3000 by installing the Modular Upgrade package.

  • Bolts to standard LS1000 Blowoff.

  • Re-use the installed overhead nozzle on the articulated unit.

  • All the features of the LS3000

  • Can also be a Bed Blowoff LS3250


Stationary Blowoff - LS1000.jpg

Stationary Blowoff - LS1000

Convert at any time to Articulated Blowoff with LS1500 Upgrade!

  • Adjustable side arm nozzles in 3 Axis.

  • Adjustable top arm nozzle 2 Axis.

  • Monitored break away side arms with 16 inches clearance each side.

  • Fan generated air supply.

  • Ionized laminar air flow for improved cleaning.

  • Integral hard duct system.

  • Top or bottom feed duct.

  • Conveyor interlocks.

  • Adjustable timer for fan shut down when paint line is idle


Ecoat Blowoff (Medium).jpg

E-Coat blowoff - ls0100-4-40

  • High pressure fan supplying high volume / high velocity air to multiple rows of targeting nozzles directed to remove water from the job reducing drips boil outs

  • Stainless steel structures

  • Nozzles mounted on fully adjustable brackets

  • Fan generated air supply

  • (2) Axis manually adjustable nozzles

  • Adjustable time for fan shutdown when line idle

  • Optional PLC/HMI control
